LI211

Check availability

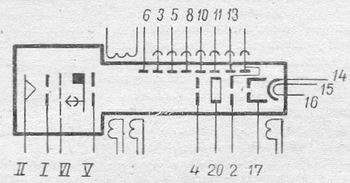

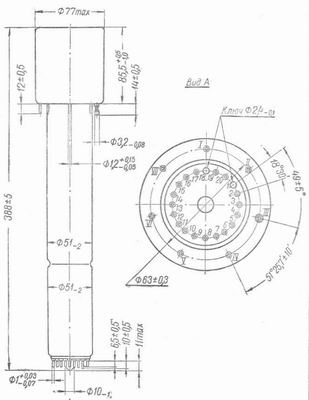

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameLI211
TypeImage-orthicon
Application fieldin wide illuminating ramge,625 string TV equipment
Photocathode typeBismuth-Silver-Cesium translucent
Beam focusingelectromagnetic
Beam deflectionelectromagnetic
Max.spectrum sensitivity, Angstrem4400-5500
Photocathode area, mm24 x 32 to 28 x 28
Resolution, lines625
Illuminating intensity, Lux5*10e-4 - 5,0
