LI213

Check availability

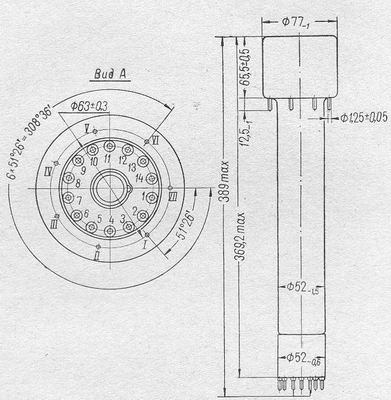

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameLI213
TypeImage-orthicon
Application fieldin TV equipment
Photocathode typeBismuth-Silver-Cesium translucent
Beam focusingelectromagnetic
Beam deflectionelectromagnetic
Max.spectrum sensitivity, Angstrem4500-5800
Photocathode area, mm24 x 32
Resolution, lines600
Illuminating intensity, Lux0,5
