LI203

Check availability

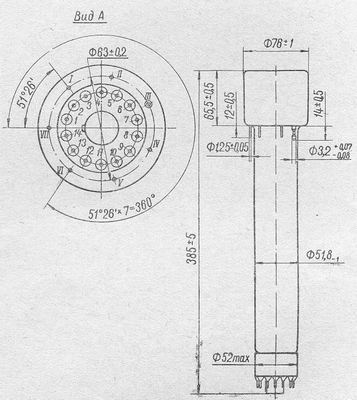

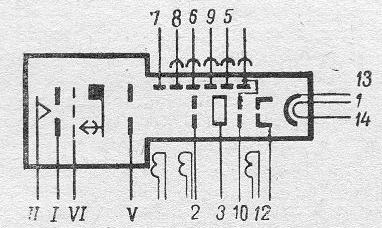

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameLI203
TypeImage-orthicon
Application fieldin 1029 string TV equipment
Photocathode typeAntimony-Oxide-Cesium, translucent
Max.spectrum sensitivity, Angstrem7000
Photocathode area, mm28 x 28
Resolution, lines900
Illuminating intensity, Lux1,0-5,0

See also

LI101 Max.spectrum sensitivity, Angstrem4000-5000 Resolution, lines625 LI17 Max.spectrum sensitivity, Angstrem4500-5800 Resolution, lines625 LI201 Max.spectrum sensitivity, Angstrem4500-5800 Resolution, lines625 LI202 Max.spectrum sensitivity, Angstrem4500-5800 Resolution, lines600 LI204 Max.spectrum sensitivity, Angstrem4000-5500 Illuminating intensity, Lux5,0-40,0 LI207 Max.spectrum sensitivity, Angstrem4700-5700 Resolution, lines625 LI211 Max.spectrum sensitivity, Angstrem4400-5500 Resolution, lines625 LI212 Max.spectrum sensitivity, Angstrem4000-5000 Resolution, lines600 LI212M Max.spectrum sensitivity, Angstrem400-5000 Resolution, lines600 LI213 Max.spectrum sensitivity, Angstrem4500-5800 Resolution, lines600
