LI204

Check availability

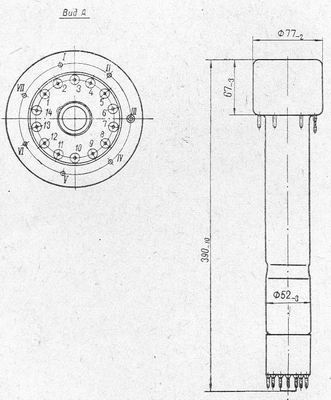

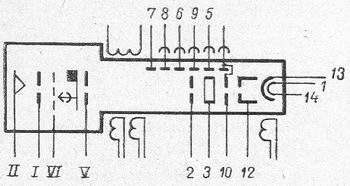

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameLI204
TypeImage-orthicon
Application fieldin TV equipment
Photocathode typeBismuth-Silver-Cesium translucent
Beam focusingelectromagnetic
Beam deflectionelectromagnetic
Max.spectrum sensitivity, Angstrem4000-5500
Photocathode area, mm24 x 32
Illuminating intensity, Lux5,0-40,0
