LI214

Check availability

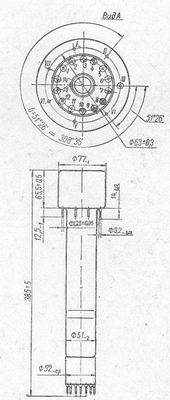

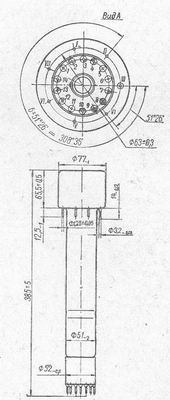

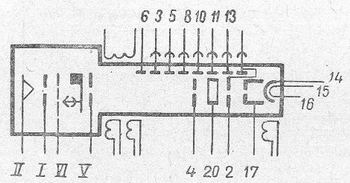

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameLI214
TypeImage-orthicon
Application fieldin 625-string TV equipment
Photocathode typeBismuth-Silver-Cesium translucent
Beam focusingelectromagnetic
Beam deflectionelectromagnetic
Max.spectrum sensitivity, Angstrem4500-5500
Photocathode area, mm24 x 32 to 28 x 28
Resolution, lines600
Illuminating intensity, Lux5*10e-5-5,0
