LI221

Check availability

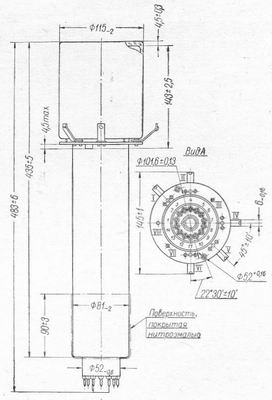

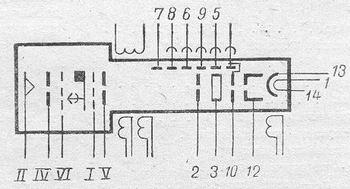

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameLI221
TypeImage-orthicon
Application fieldstudio BW broadcasting
Photocathode typeBismuth-Silver-Cesium translucent
Beam focusingelectromagnetic
Beam deflectionelectromagnetic
Max.spectrum sensitivity, Angstrem4400-5000
Photocathode area, mm24 x 32
Illuminating intensity, Lux1,8

See also

LI101 Max.spectrum sensitivity, Angstrem4000-5000 Resolution, lines625 LI17 Max.spectrum sensitivity, Angstrem4500-5800 Resolution, lines625 LI201 Max.spectrum sensitivity, Angstrem4500-5800 Resolution, lines625 LI202 Max.spectrum sensitivity, Angstrem4500-5800 Resolution, lines600 LI203 Max.spectrum sensitivity, Angstrem7000 Resolution, lines900 LI204 Max.spectrum sensitivity, Angstrem4000-5500 Illuminating intensity, Lux5,0-40,0 LI207 Max.spectrum sensitivity, Angstrem4700-5700 Resolution, lines625 LI211 Max.spectrum sensitivity, Angstrem4400-5500 Resolution, lines625 LI212 Max.spectrum sensitivity, Angstrem4000-5000 Resolution, lines600 LI212M Max.spectrum sensitivity, Angstrem400-5000 Resolution, lines600
