LI230

Check availability

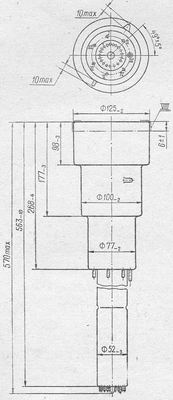

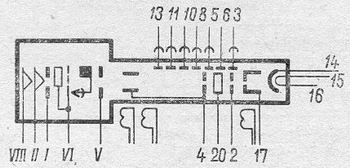

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameLI230
TypeImage-orthicon
Application fieldin low illuminated TV equipment
Beam focusingelectromagnetic
Beam deflectionelectromagnetic
Max.spectrum sensitivity, Angstrem4000-5000
Photocathode area, mm62 x 62
Resolution, lines1000
Illuminating intensity, Lux5*10e-7 to 1*10e-3
