K-315

Check availability

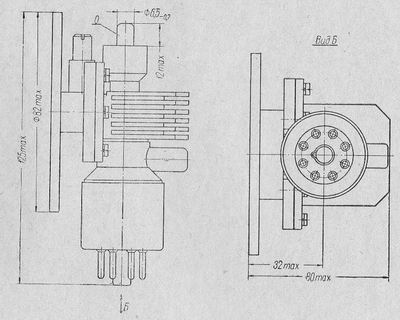

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameK-315
TypeReflex
Application fieldapplication as FM UHF generator in mobile TV transmitters
Cathode typeOxide, indirect heating
Envelopemetal-ceramic
Mass700g
Cooling methodforced air
Frequency band7750-7550MHz
Output power800mW
Tuning steepness, MHz/mA0,4
Tuning range, MHz32
Filament voltage, V6,3
Filament current, A1
Resonator voltage, V750
Reflector negative voltage, V100-500

See also

K-11 TypeReflex Frequency band8,25-12,0cm K-114 TypeReflex Frequency band8825-8775MHz K-12 TypeReflex Frequency band2500-3636MHz K-147 TypeReflex Frequency band7,9-13,2GHz K-15 TypeReflex Frequency band3090-5660MHz K-152 TypeReflex Frequency band32600-31680MHz K-154 TypeReflex Frequency band5,6-9,1GHz K-154A TypeReflex Frequency band8,0-9,7GHz K-162 TypeReflex Frequency band6,0-10,8GHz K-19 TypeReflex Frequency band9,174-9,524GHz
