K-33

Check availability

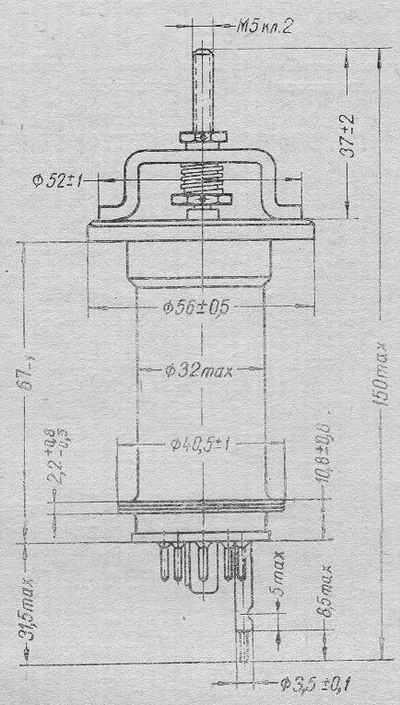

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameK-33
TypeReflex
Application fieldapplication as low-power generator in measuring equipment
Cathode typeOxide, indirect heating
Envelopemetal, coaxial output, without tuning mechanism
Mass300g
Cooling methodNatural
Frequency band1,8-2,1cm
Output power10mW
Tuning range, MHz32
Filament voltage, V6,3
Filament current, A0,45-0,7
Resonator voltage, V400
Reflector negative voltage, V150-600
