TGI1-1000/25

Check availability

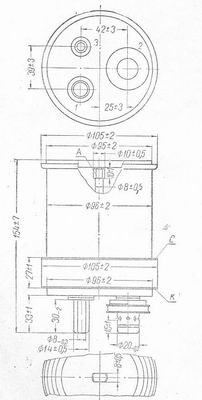

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameTGI1-1000/25
Applicationin special equipment
Envelopemetal-ceramic
Mass2000
Frequency, Hz700
Filament voltage, V6,3
Filament current, A20
Pulse anode current, A1000
Average anode current, mA1000
Direct and reverse voltage, kV25
Anode current pulse duration, uS-50
