TGI1-3/1

Check availability

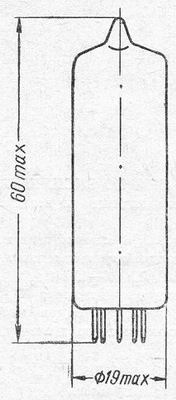

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameTGI1-3/1
Applicationin special equipment
Envelopeglass
Mass15
Frequency, Hz2000
Filament voltage, V6,3
Filament current, A0,8-1,1
Pulse anode current, A3
Average anode current, mA6
Direct and reverse voltage, kV1
Anode current pulse duration, uS0,4

See also

TGI1-10/1 Pulse anode current, A10 Direct and reverse voltage, kV1 TGI1-100/8 Pulse anode current, A100 Direct and reverse voltage, kV8 TGI1-1000/25 Pulse anode current, A1000 Direct and reverse voltage, kV25 TGI1-130/10 Pulse anode current, A130 Direct and reverse voltage, kV10 TGI1-130/8 Pulse anode current, A130 Direct and reverse voltage, kV8 TGI1-2000/35 Pulse anode current, A2000 Direct and reverse voltage, kV35 TGI1-2500/35 Pulse anode current, A2500 Direct and reverse voltage, kV35 TGI1-2500/50 Pulse anode current, A2500 Direct and reverse voltage, kV50 TGI1-270/12 Pulse anode current, A270 Direct and reverse voltage, kV12 TGI1-3000/30 Pulse anode current, A3000 Direct and reverse voltage, kV30
