TGI1-3000/30

Check availability

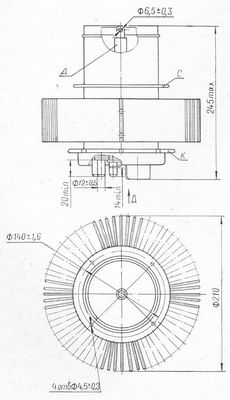

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameTGI1-3000/30
ApplicationHF oscillation ans commutation
Envelopemetal-ceramic
Mass8000
Frequency, Hz100
Filament voltage, V6,3
Filament current, A48-57
Pulse anode current, A3000
Average anode current, mA3000
Direct and reverse voltage, kV30
Anode current pulse duration, uS10
