TGI1-270/12

Check availability

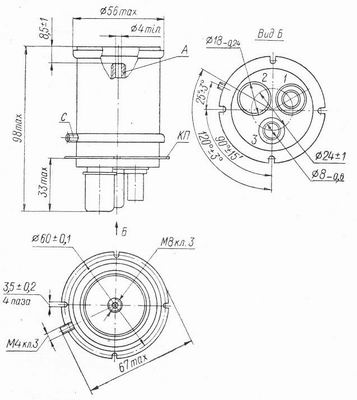

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameTGI1-270/12
Applicationas commutating device
Envelopemetal-ceramic
Mass450
Frequency, Hz50000
Filament voltage, V6,3
Filament current, A9,0-12,0
Pulse anode current, A270
Average anode current, mA400
Direct and reverse voltage, kV12
Anode current pulse duration, uS0,1-50
