TGI1-2500/50

Check availability

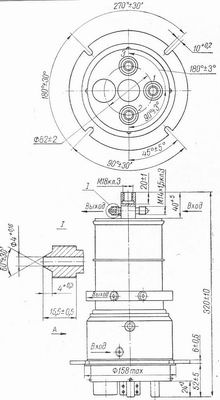

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameTGI1-2500/50
Applicationin special equipment
Envelopemetal-ceramic
Mass8000
Frequency, Hz400
Filament voltage, V6,3
Filament current, A76-94
Pulse anode current, A2500
Average anode current, mA4000
Direct and reverse voltage, kV50
Anode current pulse duration, uS30
