TGI1-500/16

Check availability

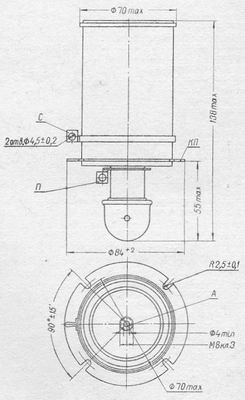

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameTGI1-500/16
Applicationin special equipment
Envelopemetal-ceramic
Mass700
Frequency, Hz1000
Filament voltage, V6,3
Filament current, A13-17
Pulse anode current, A500
Average anode current, mA500
Direct and reverse voltage, kV16
Anode current pulse duration, uS1
