TGI3-325/16

Check availability

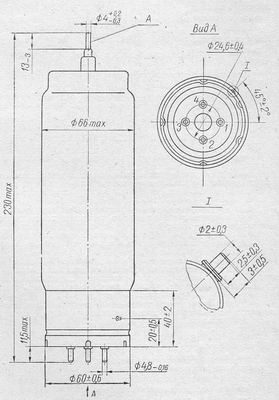

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameTGI3-325/16
Applicationin modulator
Envelopeglass
Mass350
Frequency, Hz1000
Filament voltage, V6,3
Filament current, A7,7-9,4
Pulse anode current, A325
Average anode current, mA200
Direct and reverse voltage, kV16
