TGU1-27/7

Check availability

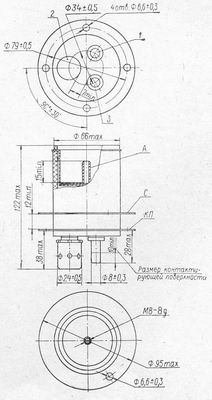

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameTGU1-27/7
ApplicationPulse power commutation
Envelopemetal-ceramic
Mass800
Frequency, Hz3000
Filament voltage, V6,3
Filament current, A13-16,5
Pulse anode current, A27
Average anode current, mA200
Direct and reverse voltage, kV7
Anode current pulse duration, uS0,5-300
