TGU1-5/12

Check availability

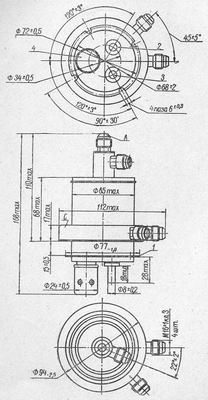

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameTGU1-5/12
ApplicationPulse power commutation
Envelopemetal-ceramic
Mass1200
Frequency, Hz1000-200000
Filament voltage, V6,3
Filament current, A20,5-24,5
Pulse anode current, A5
Average anode current, mA1300
Direct and reverse voltage, kV12
Anode current pulse duration, uS0,25-100

See also

TGI1-10/1 Pulse anode current, A10 Direct and reverse voltage, kV1 TGI1-100/8 Pulse anode current, A100 Direct and reverse voltage, kV8 TGI1-1000/25 Pulse anode current, A1000 Direct and reverse voltage, kV25 TGI1-130/10 Pulse anode current, A130 Direct and reverse voltage, kV10 TGI1-130/8 Pulse anode current, A130 Direct and reverse voltage, kV8 TGI1-2000/35 Pulse anode current, A2000 Direct and reverse voltage, kV35 TGI1-2500/35 Pulse anode current, A2500 Direct and reverse voltage, kV35 TGI1-2500/50 Pulse anode current, A2500 Direct and reverse voltage, kV50 TGI1-270/12 Pulse anode current, A270 Direct and reverse voltage, kV12 TGI1-3/1 Pulse anode current, A3 Direct and reverse voltage, kV1
