1A1P

Check availability

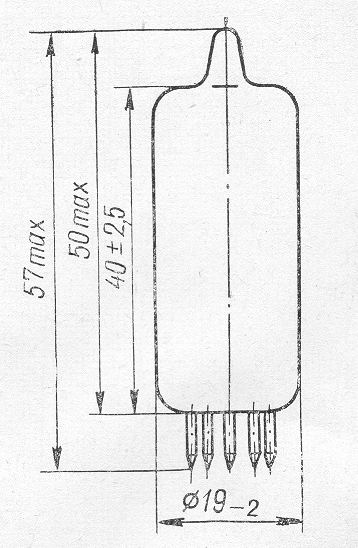

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name1A1P
Typeheptode
Applicationfreq conversion
Cathode typeoxide, direct heating
Envelopeglass, miniature
Mass, g10
Socket typeRSh4
Filament voltage, V1,2
Filament current, A0,053-0,067
Anode voltage, V90
Grid1 voltage, V~15
Grid2 voltage, V45
Grid4 voltage, V45
Reverse grid current, uA0,6
Steepness, mA/V0,25
Microphonic noise, mV500mV
