1A2P

Check availability

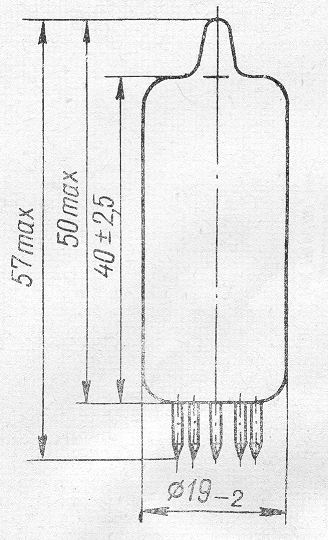

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name1A2P
Typeheptode
Applicationfreq conversion
Cathode typeoxide, direct heating
Envelopeglass, miniature
Mass, g10
Socket typeRsh4
Filament voltage, V1,2
Filament current, A0,027-0,033
Anode voltage, V60
Grid1 voltage, V~8
Grid2 voltage, V45
Grid4 voltage, V45
Reverse grid current, uA0,3
Steepness, mA/V0,24
