1C7S

Check availability

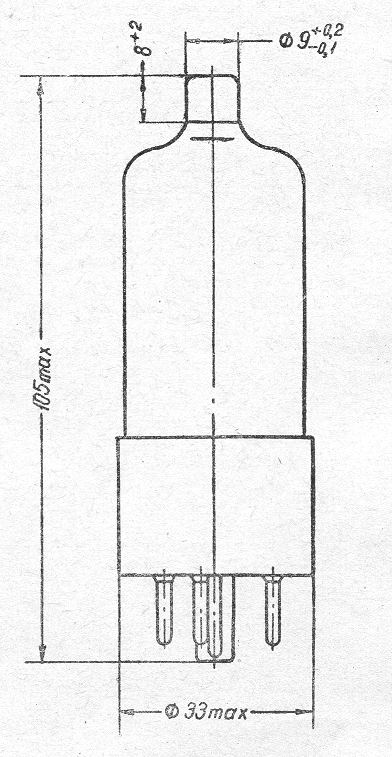

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name1C7S
Typerectifier
ApplicationHF pulses rectification
Cathode typeoxide, direct heating
Envelopeglass
Mass, g38
Socket typeRSh5/octal
Filament voltage, V1,25
Filament current, A0,18-0,22
Anode voltage, V100
Max.reverse anode voltage, kV30
Anode current, A0,004
