1C11P

Check availability

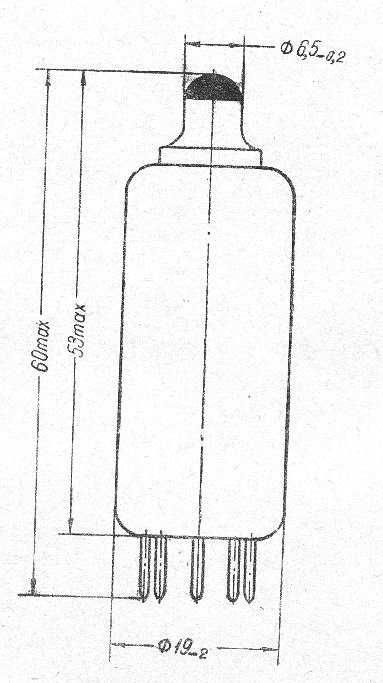

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name1C11P
Typerectifier
Applicationscan retreating pulses rectification
Cathode typeoxide, direct heating
Envelopeglass, miniature
Mass, g15
Socket typersh4
Filament voltage, V1,2
Filament current, A0,17-0,23
Anode voltage, V100
Max.reverse anode voltage, kV20
Anode current, A0,004
