UV-278

Check availability

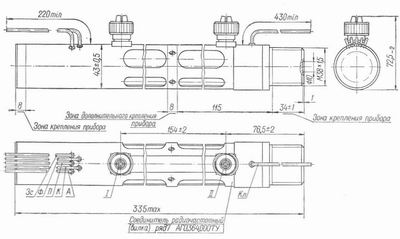

SG2S pin diagram
Click to see in full size
NameUV-278
Application fieldapplication in transmitter
Cathode typeOxide, indirect heating
Output typecoaxial
Envelopemetal-ceramic
Mass1,3kg
Cooling methodconductive
Frequency range5,7-6,5GHz
Output power20W
Gain40dB
Filament voltage, V8
Filament current, A0,6-0,9
First anode voltage, V2600-3000
Slow-wave circuit voltage, V2400-2800
Collector voltage, V1200-1600
External loading agreement coefficient1,5

See also

UV-12 Frequency range3,1-4,1cm Gain30db UV-13 Frequency range4400-3400MHz Gain20dB UV-13-1 Frequency range4400-3400MHz Gain20dB UV-14 Frequency range3400-4000MHz Output power40-80mW UV-15A Frequency range2,9-3,6cm Output power0,5mW UV-204 Frequency range3900-3400MHz Output power20W UV-205 Frequency range4400-3400 Output power3-4W UV-229 Frequency range4200-3400 Output power6W UV-229-1 Frequency range4200-3400 Output power6W UV-22A Frequency range815-720MHz Gain15dB
