UV-416A

Check availability

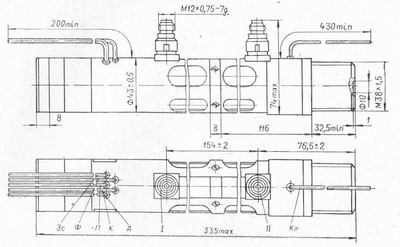

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameUV-416A
Application fieldapllication in radio equipment
Cathode typeindirect heating
Output typecoaxial
Envelopemetal-ceramic
Mass0,85kg
Cooling methodconductive
Frequency range4900-5100MHz
Output power22W
Gain37-40dB
Filament voltage, V8
Filament current, A0,6-0,9
First anode voltage, V2600-3000
Slow-wave circuit voltage, V2500-2900
Control electrode voltage, V30
Collector voltage, V1500
External loading agreement coefficient1,3
