G433

Check availability

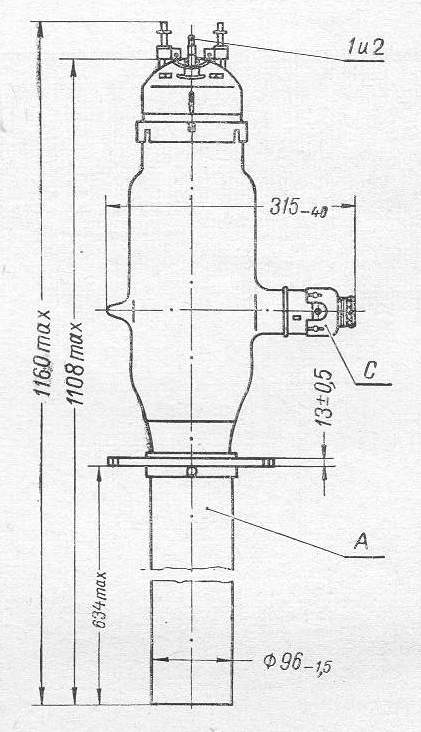

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameG433
Typetriode
Application fieldRF oscillation
Brief applicationoscillation
Cathode typetungsten, direct heating
Envelopemetal-glass
Mass14kg
Cooling methodforced water
Dimensions1160mmx315mm
Output power60kW
Filament voltage33V
Filament current195 - 225A
Maximum anode voltage40kV
