GI13BM

Check availability

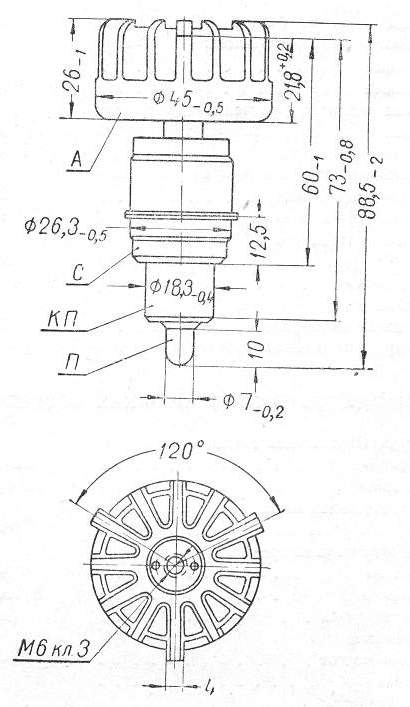

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGI13BM
Typepulse triode
Application fieldOscillation UHF in continous mode and pulse mode with anode modulation
Brief applicationOscillation
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass120g
Cooling methodforced air
Dimensions88,5mmx45mm
Output power110W
Maximum operating frequency9cm
Filament voltage12,6V
Filament current0,6 - 0,7A
Normal anode voltage400V
Maximum anode voltage1kV/4kV in pulse
Mutual conductance8 to 12mA/V
