NameGI14B
Typepulse triode
Application fieldOscillation UHF in pulse mode with anode modulation
Brief applicationOscillation
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass1,5kg
Cooling methodforced air

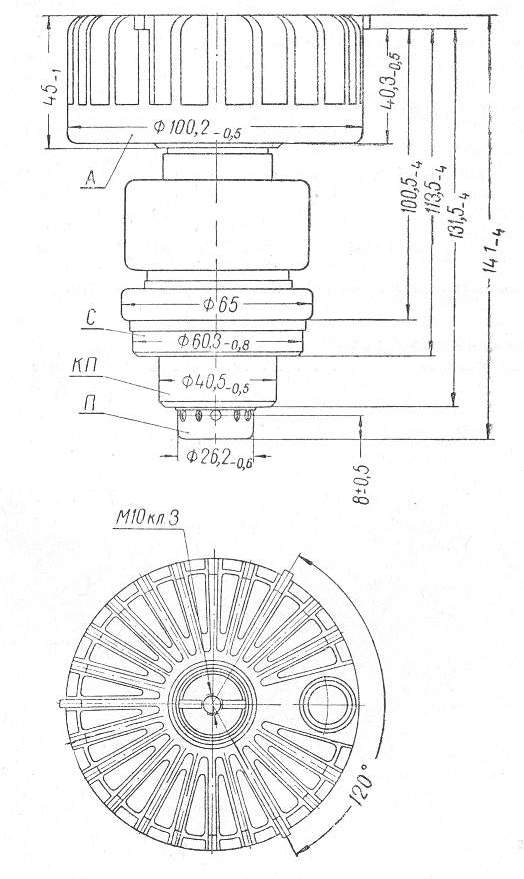

Dimensions141mmx100,2mm
Output power500W/100kW in pulse
Maximum operating frequency30cm
Filament voltage12,6V
Filament current3 - 3,9A
Normal anode voltage2kV
Maximum anode voltage21kV
Mutual conductance27 to 37mA/V
