GI16B

Check availability

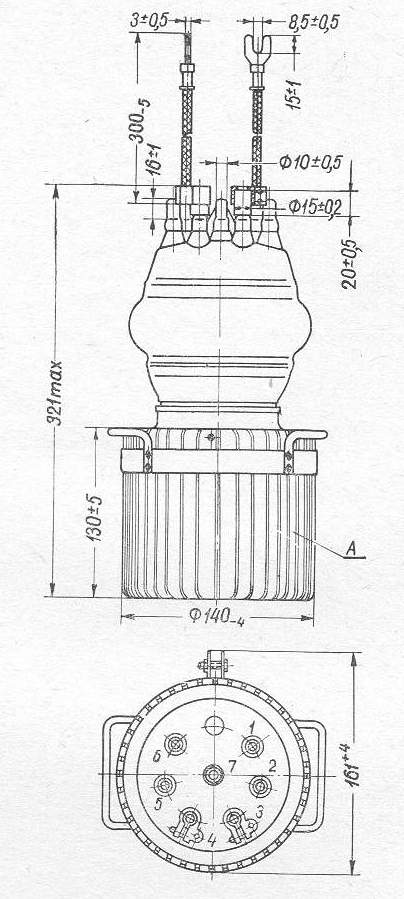

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGI16B
Typepulse tetrod
Application fieldRF oscillation and amplification
Brief applicationoscillation, amplification
Cathode typetugsten, carbidized, direct heating
Envelopemetal-glass
Mass6kg
Cooling methodforced air
Dimensions321mmx140mm
Output power2,5kW/60kW in pulse
Filament voltage8,3V
Filament current97 - 107A
Maximum anode voltage13,2kV
