NameGI150
Typepulse triode
Application fieldoscillation in pulse and continous mode
Brief applicationoscillation
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass60g
Cooling methodforced air

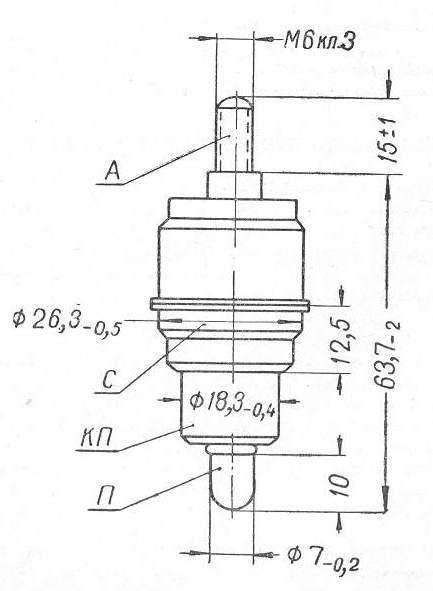

Dimensions63,7mmx26,3mm
Output power3W/100W in pulse
Maximum operating frequency7cm
Filament voltage12,6V
Filament current0,815+0,065A
Normal anode voltage0,4kV
Maximum anode voltage0,8kV/4kV in pulse
Mutual conductance10+2mA/V
