NameGI12B
Typepulse triode
Application fieldoscillation and amplification RF in UHF band in continous and pulse anode modulation mode
Brief applicationamplification, oscillation
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass120g
Cooling methodforced air

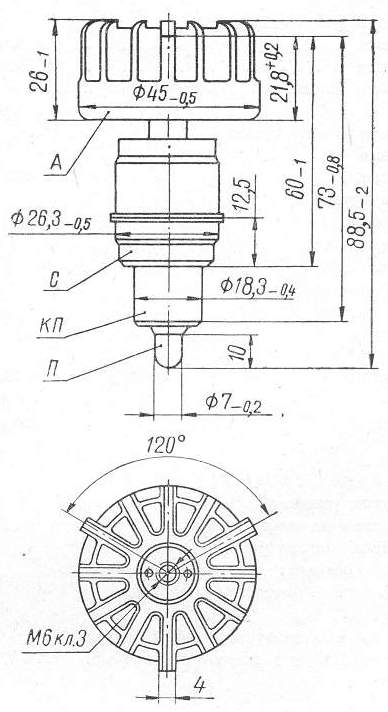

Dimensions88,5mmx45mm
Output power80W
Maximum operating frequency9cm
Filament voltage12,6V
Filament current0,75 - 0,88A
Normal anode voltage400V
Maximum anode voltage0,8kV/2kV in pulse
Mutual conductance8 to 12mA/V
