GI15B

Check availability

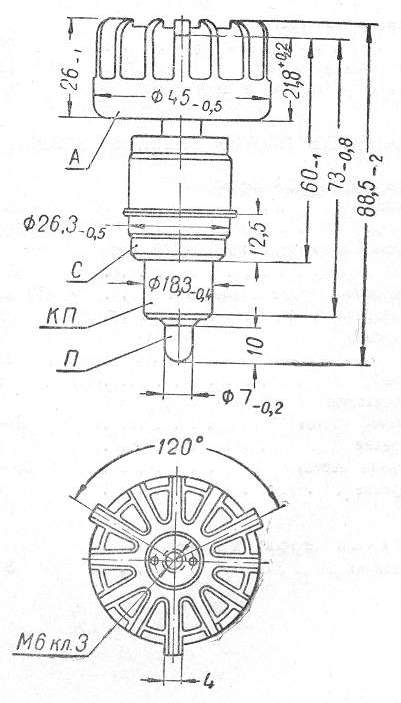

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGI15B
Typepulse triode
Application fieldoscillation in pulse and continous mode
Brief applicationoscillation
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass120g
Cooling methodforced air
Dimensions88,5mmx45mm
Output power3W/100W in pulse
Maximum operating frequency7cm
Filament voltage12,6V
Filament current0,75 - 0,88A
Normal anode voltage400V
Maximum anode voltage0,8kW/4kW in pulse
Mutual conductance8 to 12mA/V

See also

G433 Typetriode Brief applicationoscillation G807 Typebeam tetrode Brief applicationoscillation, amplification G811 Typetriode Brief applicationoscillation GI11B Typepulse triode Brief applicationoscillation GI12B Typepulse triode Brief applicationamplification, oscillation GI130M Typepulse triode Brief applicationoscillation GI13BM Typepulse triode Brief applicationOscillation GI14B Typepulse triode Brief applicationOscillation GI150 Typepulse triode Brief applicationoscillation GI16B Typepulse tetrod Brief applicationoscillation, amplification
