GI17

Check availability

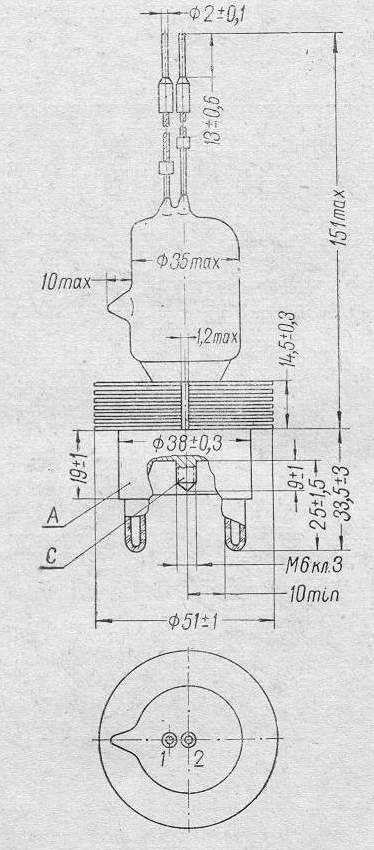

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGI17
Typepulse triode
Application fieldOscillation of HF energy pulses
Brief applicationOscillation
Cathode typeoxide, indirect heating
Envelopemetal-glass
Mass250g
Cooling methodforced air
Dimensions184,5mmx51mm
Output power150W/100kW in pulse
Maximum operating frequency500MHz
Filament voltage6,3V
Filament current7 - 8A
Maximum anode voltage9kV in pulse
Mutual conductance9mA/V
