GI18B

Check availability

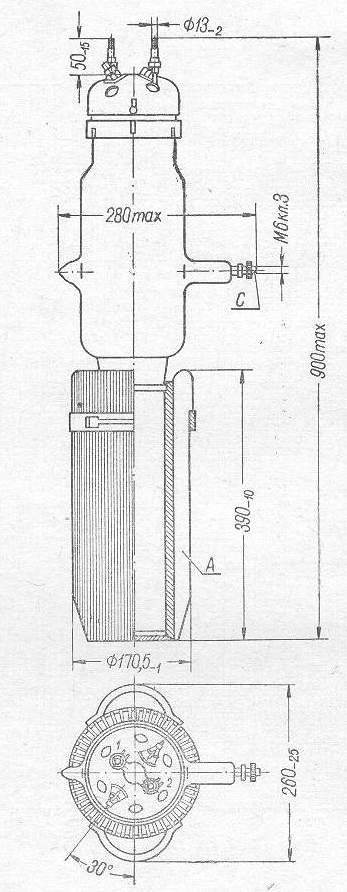

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGI18B
Typepulse triode
Application fieldoscillation and aplification UHF on pulse mode up to 160kHz
Brief applicationoscillation, amplification
Cathode typetugsten, carbidized, direct heating
Envelopemetal-glass
Mass31kg
Cooling methodforced air
Dimensions900mmx280mm
Output power6kW
Maximum operating frequency160kHz
Filament voltage12,5V
Filament current175 - 215A
Normal anode voltage16,5kV
Maximum anode voltage16,5kV
Mutual conductance20 to 30mA/V
Pulse duration300uS
