NameGI18BM
Typepulse triode
Application fieldoscillation and aplification UHF on pulse mode up to 160kHz
Brief applicationoscillation, amplification
Cathode typetugsten, carbidized, direct heating
Envelopemetal-glass
Mass35kg
Cooling methodforced air

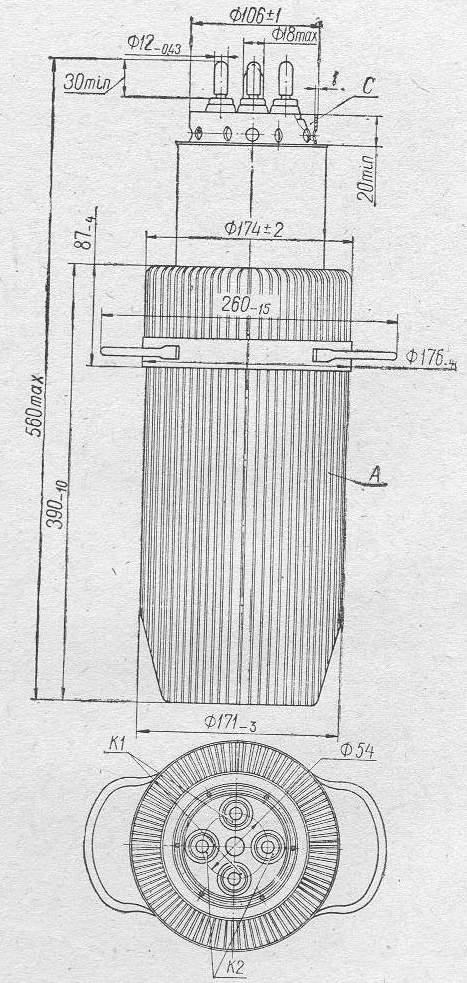

Dimensions560mmx260mm
Output power6kW/300kW in pulse
Maximum operating frequency160kHz
Filament voltage12,5V
Filament current185 - 215A
Maximum anode voltage16,5kV
Mutual conductance20 to 30 mA/V
