GI19B

Check availability

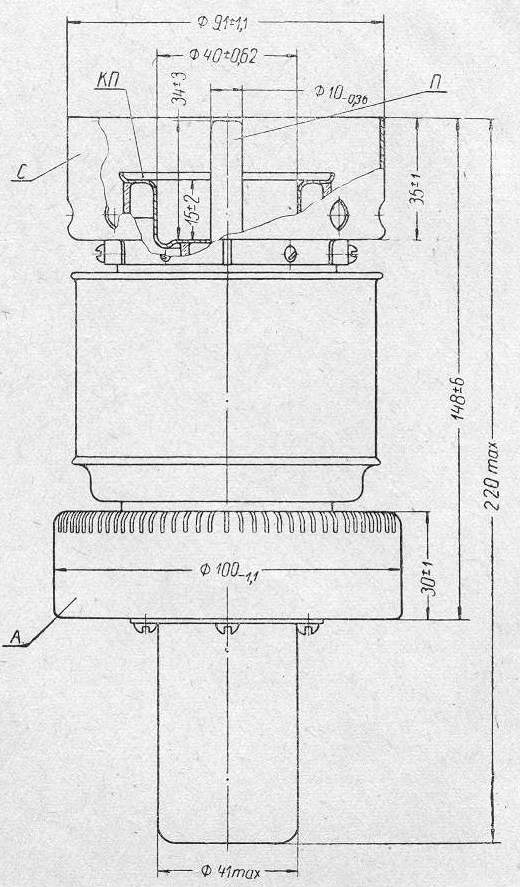

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGI19B
Typepulse triode
Application fieldOscillation RF in common grid cofiguration in self-sustained mode and pulse anode manipulation
Brief applicationOscillation
Cathode typeoxide, indirect heating
Envelopemetal-glass
Mass2,5kG
Cooling methodforced air
Dimensions220mmx100mm
Output power1kW/230kW in pulse
Maximum operating frequencymetric band
Filament voltage7,3V
Filament current17 - 23 A
Maximum anode voltage14kV
Mutual conductance21 to 33mA/V
