NameGI210
Typepulse triode
Application fieldoscillation UHF on continous and pulse anode modulation mode
Brief applicationoscillation
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass60g
Cooling methodforced air

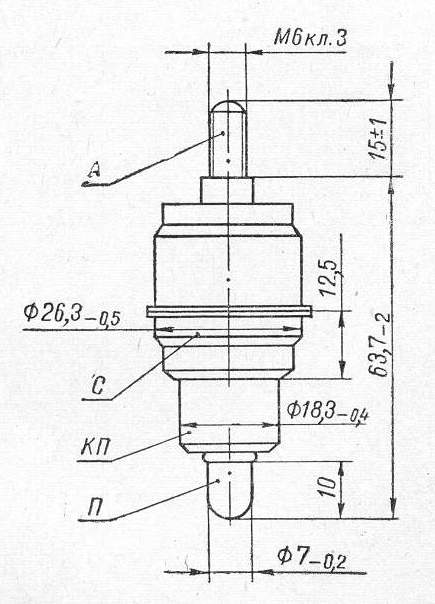

Dimensions63,7mmx26,3mm
Output power25W/4kW in pulse
Maximum operating frequency10cm
Filament voltage12,6V
Filament current0,88+0,05A
Normal anode voltage0,6kV
Maximum anode voltage0.8kV/5kV in pulse
Mutual conductance28,5+5,5mA/V
