NameGI22
Typepulse triode
Application fieldoscillation UHF power up to 375W in anode manipulation and up to 200W in grid manipulation mode and
Brief applicationoscillation
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass11g
Cooling methodforced air

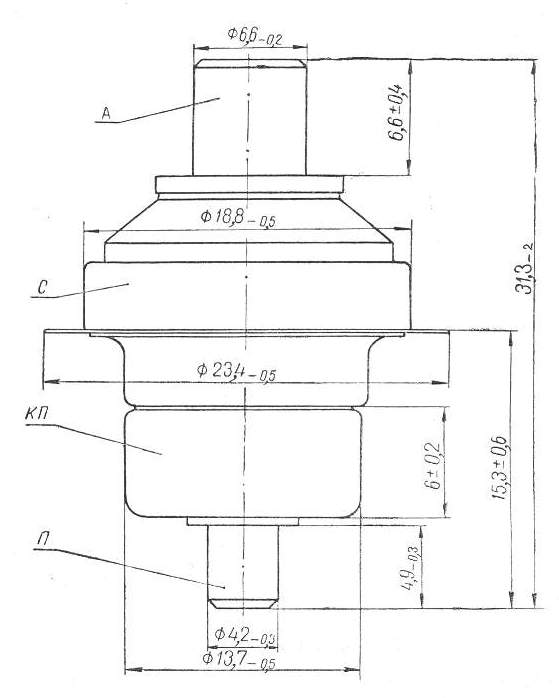

Dimensions31,3mmx23,4mm
Output power375W
Maximum operating frequency5000MHz
Filament voltage6,3V
Filament current0,57+0,04A
Normal anode voltage1,6kV
Maximum anode voltage2kV
Normal grid voltageminus50V
Mutual conductance18+9-3mA/V
