NameGI23
Typepulse triode
Application fieldoscillation and amplificaton RF on pulse mode and anode modulation in UHF band
Brief applicationoscillation, amplification
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass380g
Cooling methodforced air

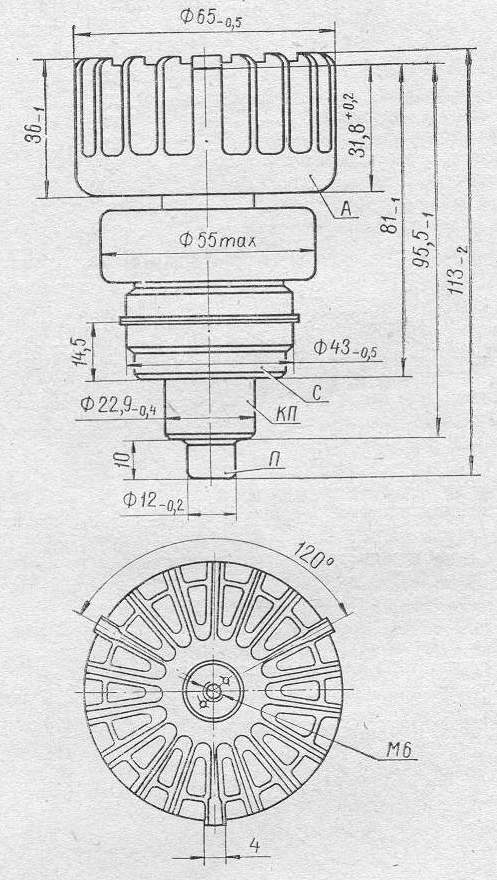

Dimensions113mmx65mm
Output power300W/40kW in pulse
Maximum operating frequency28cm
Filament voltage12,6V
Filament current2,3-2,6A
Normal anode voltage1,3kV
Maximum anode voltage1,3kV/14kV in pulse
Mutual conductance31+5mA/V
