NameGI24A
Typepulse triode
Application fieldPower amplification on pulse manipulation mode on 170MHz band in special equipment
Brief applicationamplification
Cathode typetugsten, carbidized, direct heating
Envelopemetal-glass
Mass10kg
Cooling methodforced water

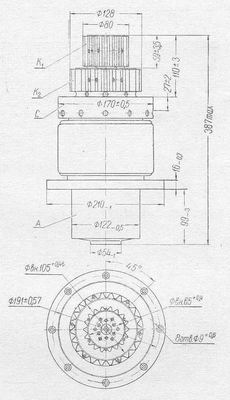

Dimensions387mmx210mm
Output power25kW/1000kW in pulse
Maximum operating frequency170MHz
Filament voltage6,3V
Filament current385 - 465A
Maximum anode voltage27kV
Mutual conductance20mA/V
