NameGI25
Typepulse triode
Application fieldoscillation of UHF on pulse anode or grid manipulation mode with output power up to 900W and freq/up
Brief applicationoscillation
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass25g
Cooling methodforced air

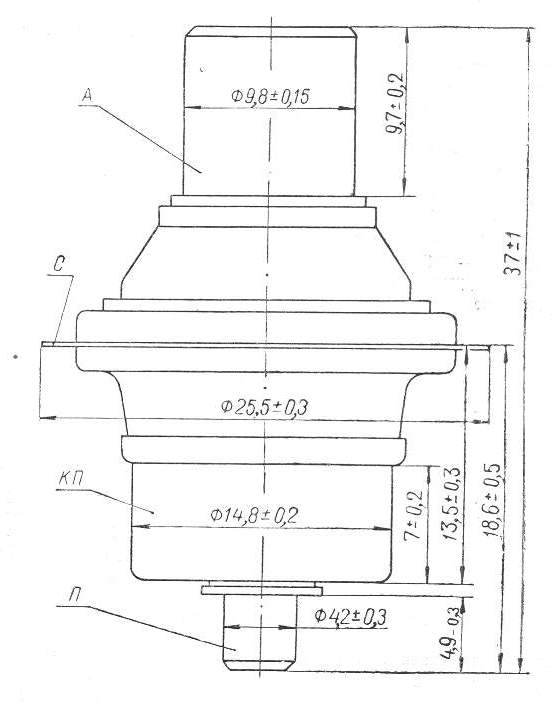

Dimensions37mmx25,5mm
Output power1200W
Maximum operating frequency5400MHz
Filament voltage6,3V
Filament current0,94-1,01A
Normal anode voltageAman-2,8kV, Gman-1,3
Maximum anode voltage3kV in pulse
Normal grid voltageminus60V
Mutual conductance24+6mA/V
