NameGI26A
Typepulse triode
Application fieldPower amplification on pulse anode manipulation mode
Brief applicationamplification
Cathode typetugsten, carbidized, direct heating
Envelopemetal-glass
Mass13kg
Cooling methodforced water

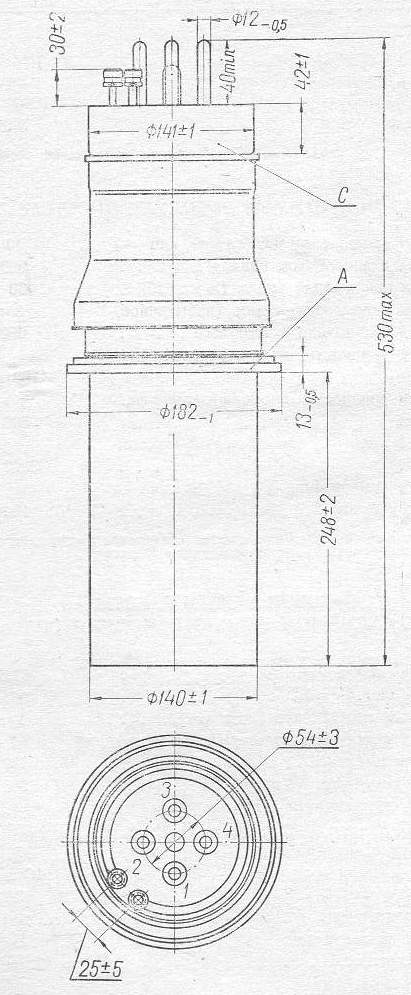

Dimensions530mmx182mm
Output power60kW/11MW in pulse
Gain coefficient28 to 38
Maximum operating frequency25MHz
Filament voltage12,6V
Filament current530 - 590A
Maximum anode voltage30kV
Mutual conductance85 to 110mA/V
