NameGI27A-1
Typepulse triode
Application fieldRF oscillation in self-sustaining mode and amlification in pulse anode manipulation
Brief applicationoscillation, amplification
Cathode typetugsten, carbidized, direct heating
Envelopemetal-ceramic
Mass11kg
Cooling methodforced water

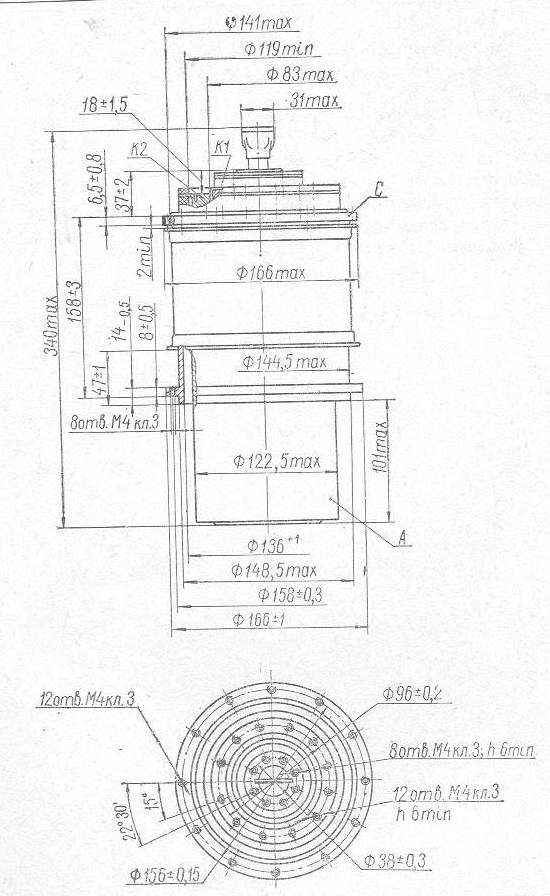

Dimensions340mmx166mm
Output power25kW/5MW in pulse
Gain coefficient28 to 42
Maximum operating frequency150MHz
Filament voltage13V
Filament current470 - 530A
Maximum anode voltage40kV
Mutual conductance75 to 105mA/v
