NameGI27A
Typepulse triode
Application fieldRF oscillation in self-sustaining mode and amlification in pulse anode manipulation
Brief applicationoscillation, amplification
Cathode typetugsten, carbidized, direct heating
Envelopemetal-glass
Mass9,5kg
Cooling methodforced water

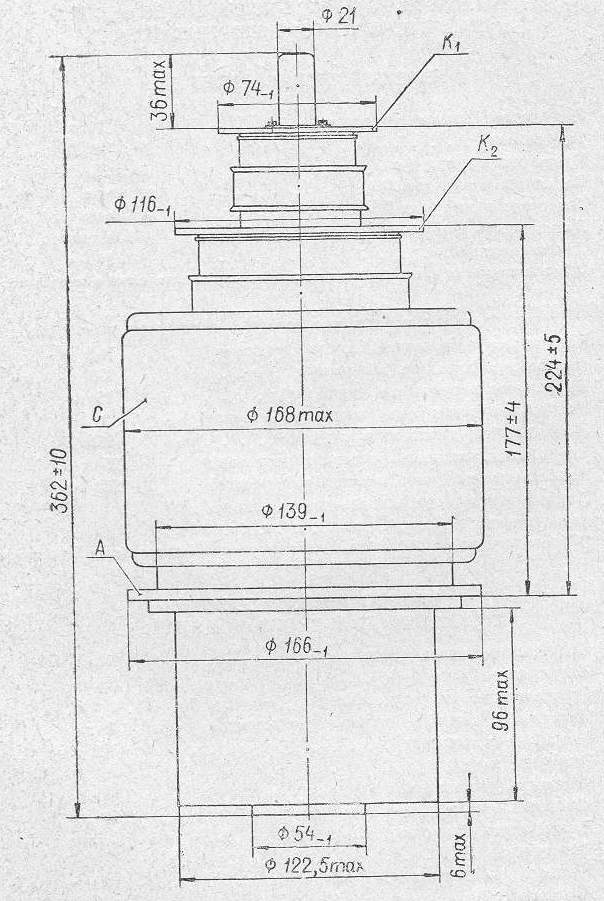

Dimensions362mmx168mm
Output power25kW/4MW in pulse
Gain coefficient20 to 30
Maximum operating frequency150MHz
Filament voltage14V
Filament current480 - 560A
Maximum anode voltage40kV
Mutual conductance70 to100mA/V
