GI2A

Check availability

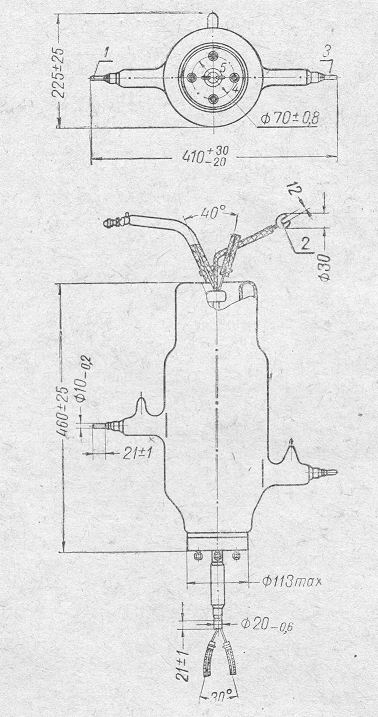

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGI2A
Typepulse beam tetrode
Application fieldpulse amplification in circuit with accumulative capacitor in anode
Brief applicationamplification
Cathode typeoxide, indirect heating
Envelopeglass
Mass8,5kg
Cooling methodforced water
Dimensions460mmx410mm
Filament voltage17V
Filament current57 - 69A
Maximum anode voltage66kV
Pulse duration0,5uS
