GI3

Check availability

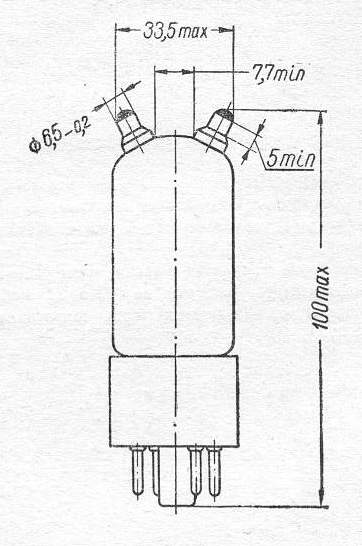

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGI3
Typepulse triode
Brief applicationoscillation
Cathode typeoxide, indirect heating
Envelopeglass with base
Mass40g
Cooling methodair
Dimensions88mmx57.5mm
Output power10W
Gain coefficient16,25+1,25
Maximum operating frequency300MHz
Filament voltage6.3V
Filament current1 - 1,2A
Normal anode voltage0,4kV
Maximum anode voltage2,8kV
Normal grid voltageminus15V
Mutual conductance2,2+0,5mA/V
