GI30

Check availability

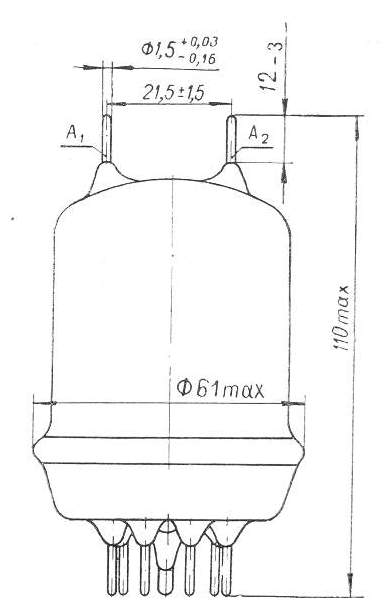

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGI30
Typedouble pulse beam tetrode
Application fieldfor application in pulse equipment for special purposes
Cathode typeoxide, indirect heating
Envelopeglass
Mass125g
Cooling methodair
Dimensions110mmx61mm
Filament voltage12,6V
Filament current1,0-1,25A
Maximum anode voltage5kV
