NameGI31
Typepulse triode
Application fieldoscillation RF with output power up to 1,5kW in pulse and freq/ up to 2100MHz
Brief applicationoscillation
Cathode typeoxide, indirect heating
Envelopemetall-ceramic
Mass18g
Cooling methodair

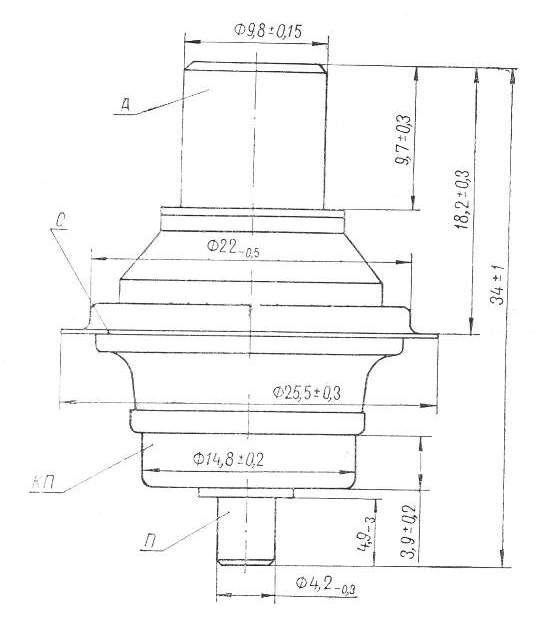

Dimensions34mm x 25,5mm
Output power12W/1,5kW in pulse
Maximum operating frequency2100MHz
Filament voltage6,3V
Filament current0,9-1,0A
Normal anode voltage2,5kV
Maximum anode voltage2,8kV
Mutual conductance15mA/V
