1P2B

Check availability

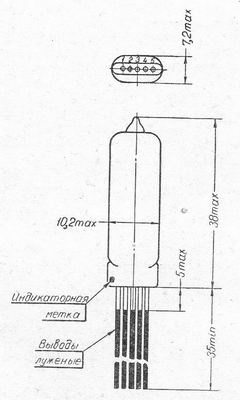

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name1P2B
Typeoutput penthode
ApplicationLow frequency power amplification
Cathode typeoxide, direct heating
Envelopeglass, miniature
Mass, g3
Socket typeflexible
Filament voltage, V1,25
Filament current, A0,045-0,055
Anode voltage, V45
Grid1 voltage, Vminus 2
Grid2 voltage, V45
Steepness, mA/V0,5
