1S38A

Check availability

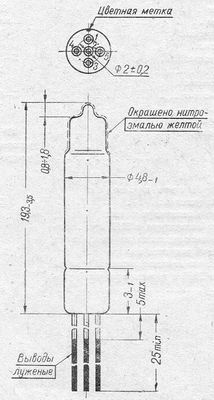

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name1S38A
Typetriode
ApplicationLow frequency power amplification and HF oscillation
Cathode typeoxide, direct heating
Envelopeglass, miniature
Mass, g700
Socket typeflexible
Gain20,0-29,0
Filament voltage, V0,9
Filament current, A0,076-0,094
Anode voltage, V70
Reverse grid current, uA0,1
Steepness, mA/V0,67-0,87
Microphonic noise, mV5
