1Zh17B

Check availability

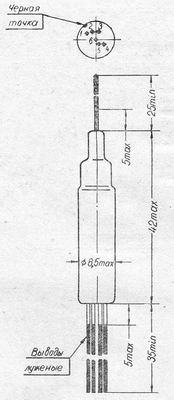

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name1Zh17B
Typepenthode
ApplicationHF voltage amplification
Cathode typeoxide, direct heating
Envelopeglass, miniature
Mass, g4
Socket typeflexible
Filament voltage, V1,2
Filament current, A0,036-0,054
Anode voltage, V60
Grid2 voltage, V40
Reverse grid current, uA0,5
Steepness, mA/V1,0-2,0
Microphonic noise, mV50
